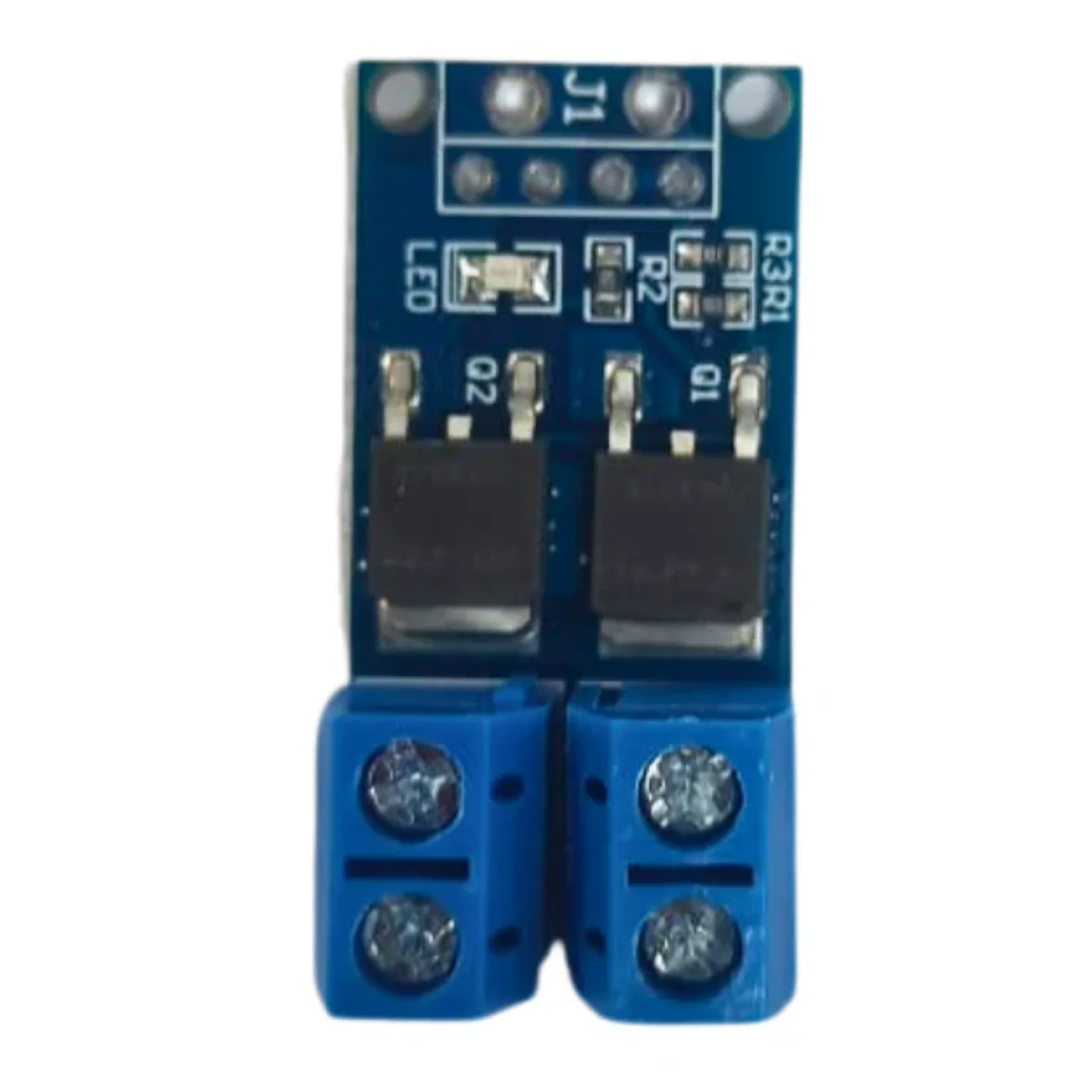

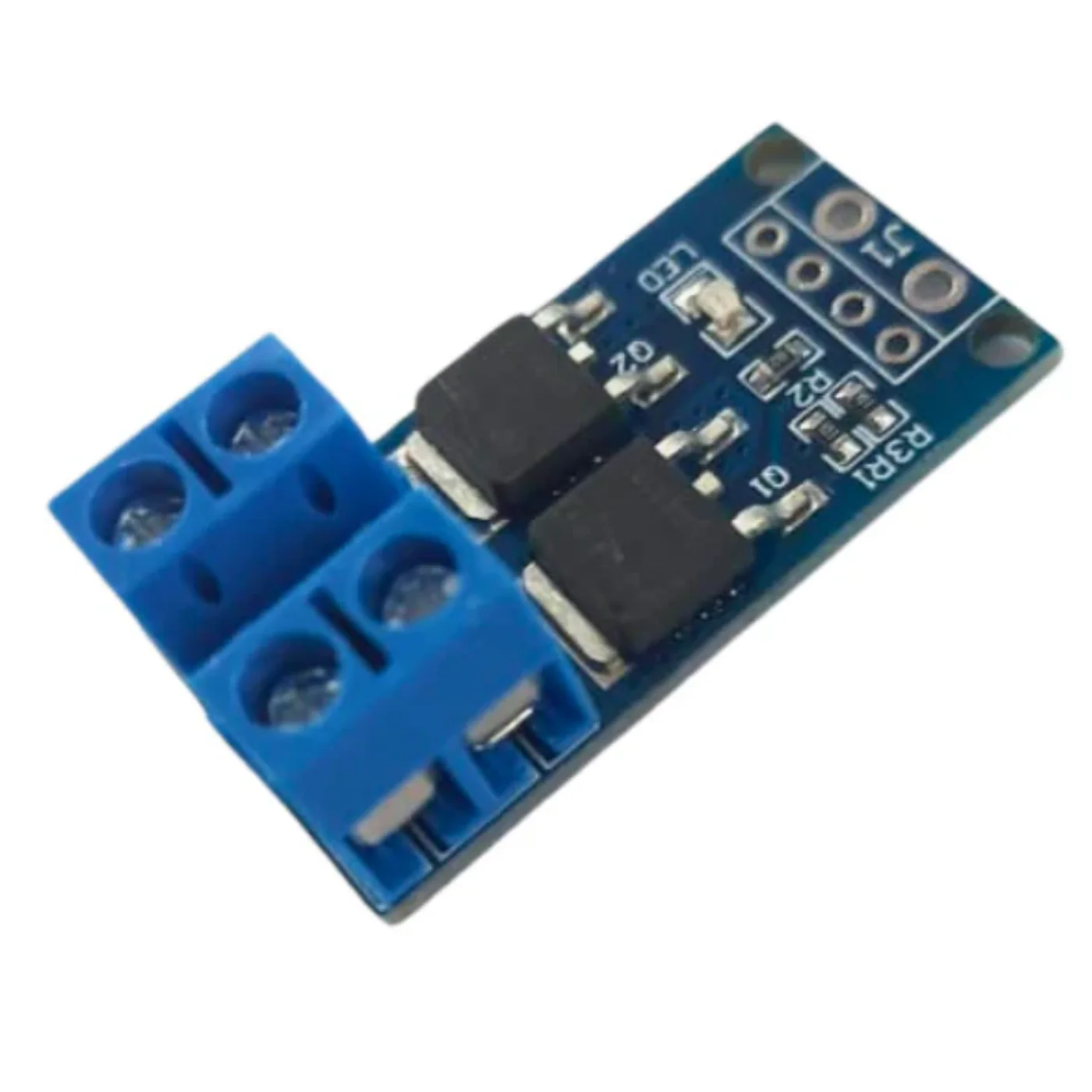

15A 400W Mosfet Trigger Switch Driver

This Dual Large Power Mosfet is the ultimate solution for high-power applications. This compact device manages 15A, 400W power at room temperature with its dual MOSFET parallel active output.

With a wide voltage input supporting PWM and a flexible trigger source, this Mosfet adapts to various setups, connecting seamlessly to microcontrollers, PLC interfaces, and DC power sources. The robust output capacity of DC 5V - 36V, continuous current 15A, and power up to 400W makes it versatile for applications like high-power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, and solenoid valves.

Its temperature resilience (-40 to 85?) ensures reliable performance in diverse conditions. Compact in size at 34mm X 17mm X 12mm, it's designed for efficiency, but for high-current operations.

Features:

• The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
• Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.

Applications:

• High-power equipment,
• motors,
• light bulbs,
• LED lights,
• DC motors, micro-pumps,
• solenoid valves, motor speed control, lamp brightness
