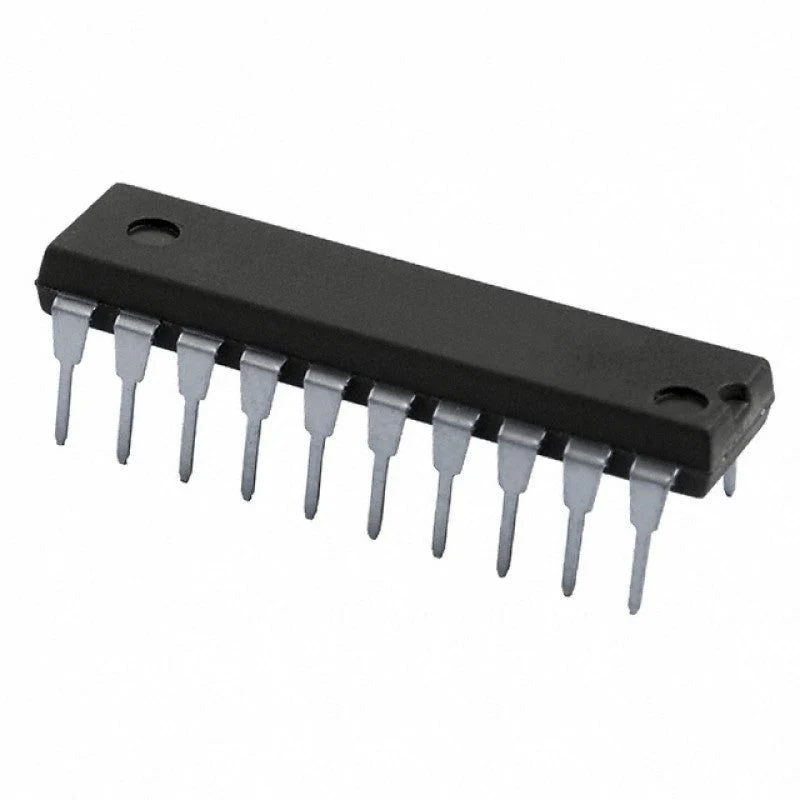

3-State Octal Bus Transceiver IC - 74HC245
3-State Octal Bus Transceiver IC - 74HC245
The 74HC Series 74HC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control function implementation minimizes external timing requirements. The device allows data transmission from the A Bus to the B Bus or from the B Bus to the A Bus depending upon the logic level at the direction control (DIR) input. The enable input (G) can be used to disable the device so that the buses are effectively isolated.
Pinout:
|
Pin Number |
Pin Name |
Description |
|
1 |
Direction Control (DIR) |
This pin decides the direction of the Data. |
|
2 to 9 |
Data Input/output (A0-A7) |
These 8 pins can be used as 8-bit Input or 8-bit Output pins based on the state of DIR pin |
|
10 |
Ground (GND) |
Connected to the ground of the system |
|
11 to 18 |
Data Input/output (B0-B7) |
These 8 pins can be used as 8-bit Input or 8-bit Output pins based on the state of DIR pin |
|
19 |
Output Enable (OE) |
Active Low pin – Used to Enable/Disable Input |
|
20 |
Supply Voltage (Vcc) |
Differential Analog input +. Connect to ADC input |
Original: $0.25
-72%$0.25
$0.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
3-State Octal Bus Transceiver IC - 74HC245
The 74HC Series 74HC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control function implementation minimizes external timing requirements. The device allows data transmission from the A Bus to the B Bus or from the B Bus to the A Bus depending upon the logic level at the direction control (DIR) input. The enable input (G) can be used to disable the device so that the buses are effectively isolated.
Pinout:
|
Pin Number |
Pin Name |
Description |
|
1 |
Direction Control (DIR) |
This pin decides the direction of the Data. |
|
2 to 9 |
Data Input/output (A0-A7) |
These 8 pins can be used as 8-bit Input or 8-bit Output pins based on the state of DIR pin |
|
10 |
Ground (GND) |
Connected to the ground of the system |
|
11 to 18 |
Data Input/output (B0-B7) |
These 8 pins can be used as 8-bit Input or 8-bit Output pins based on the state of DIR pin |
|
19 |
Output Enable (OE) |
Active Low pin – Used to Enable/Disable Input |
|
20 |
Supply Voltage (Vcc) |
Differential Analog input +. Connect to ADC input |
