AMS1117 5V Step-Down Power Supply Module

This Step-Down power supply module (buck converter) utilizes the AMS1117 5V regulator to regulate input voltage in the range of 6.0 to 12V down to a fixed 5V output at a maximum of 1A. The input and output terminals of the module can be connected through standard 0.1" header pins, which are thoughtfully positioned to enable face-down insertion into a standard.

NOTE:  Do not exceed absolute maximum input voltage (12.5v) or output current. Exceeding maximum specifications can result in permanent damage to this module or any connected devices. The jumper connector is not soldered.

Features

• Onboard AMS1117 chip.

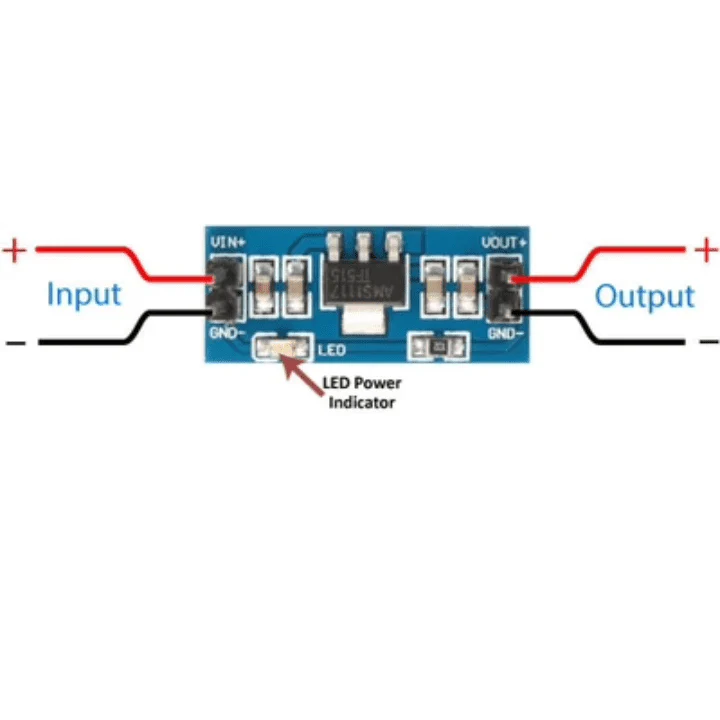

• Onboard power indicator to indicate power is turned on: Red LED.
• Output voltage interface, connection to facilitate the experimental.

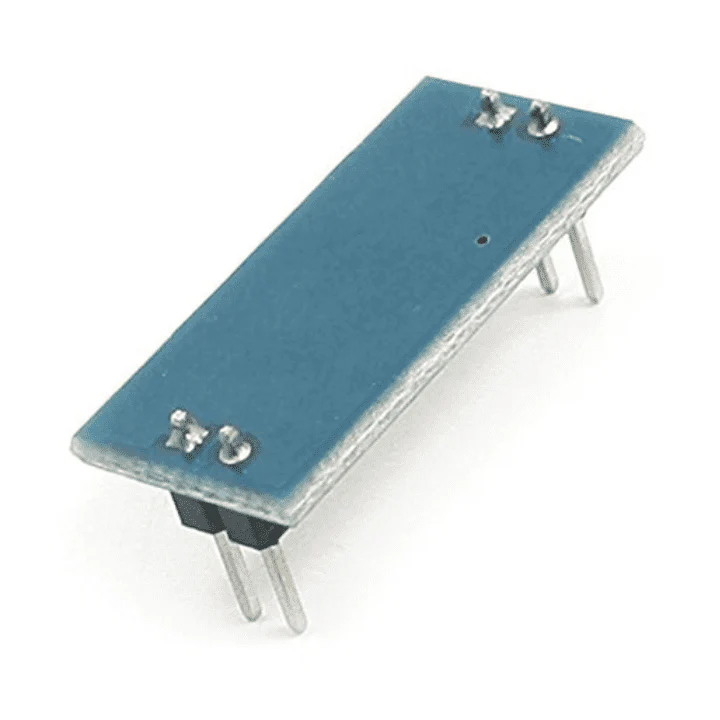

• Small Compact Size, 4Pin Type, Breadboard Friendly.
• 2P single row pin input and output for easy connection
• Dual-panel design, the layout is nice
