Digital Voltmeter Ammeter DC 100V 100A Dual Led Voltage Monitor Panel (Without Shunt)

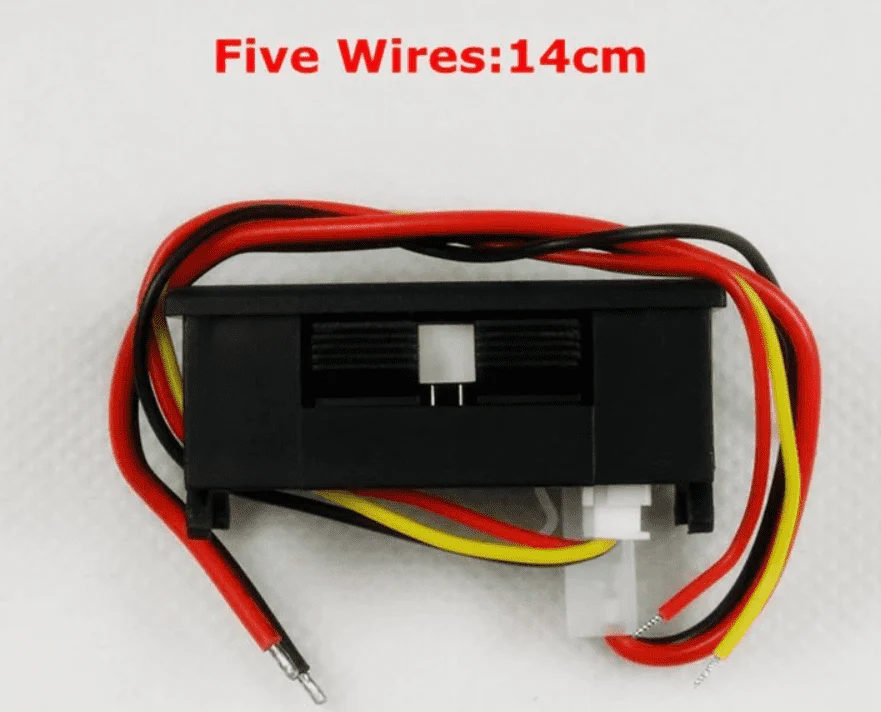

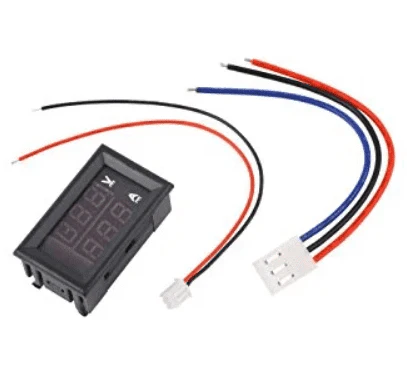

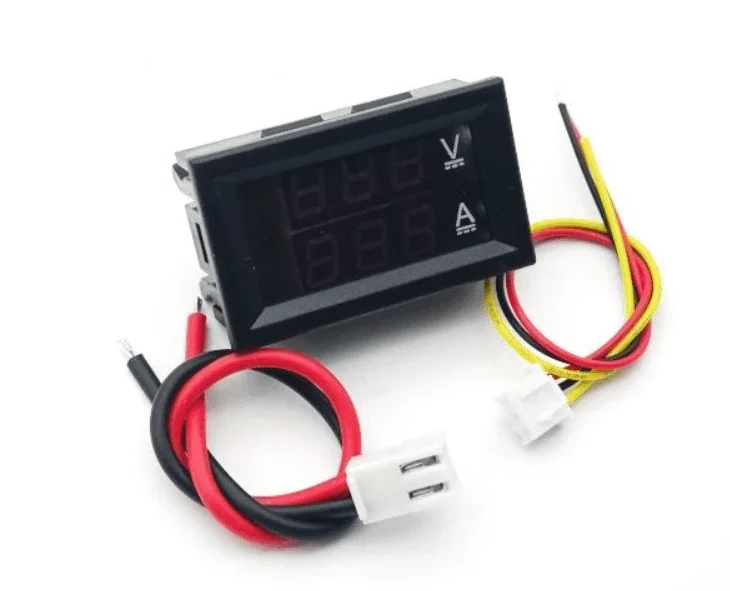

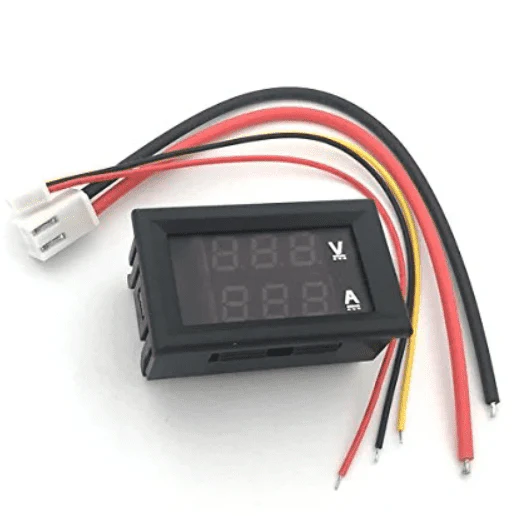

This is Red-Blue LED Digital Dual DC 100V 100A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution. One thing to note is, this meter has 2 wiring harnesses.

One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.

This can be supplied anywhere from 6 volts DC up to 30 VDC. Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning

Note : Shunt resistor is not included with this product

Features:

• Runs on 5V power supply.

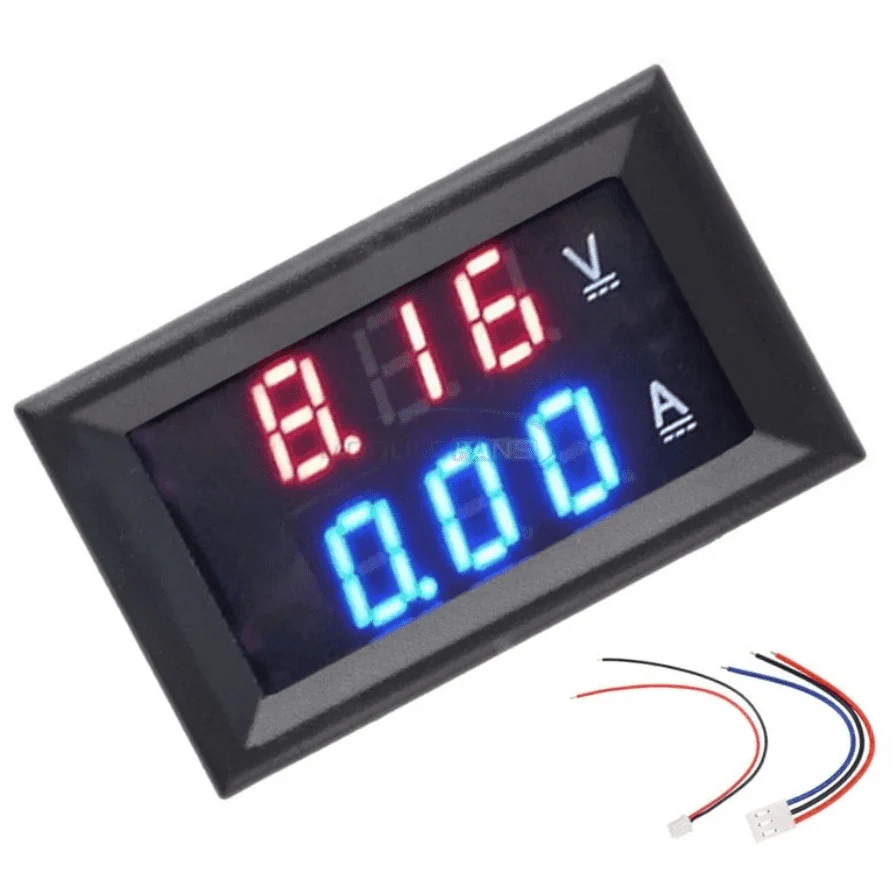

• Shows voltage in red and current in blue.

• Requires less than or equal to 60mA of current.

• Can measure from 0V to 100V DC.

• Capable of measuring current from 0A to 100A.

• Provides accuracy of ±1% (plus or minus 1 digit).

• Operates effectively in temperatures ranging from -10°C to 65°C.

• Updates readings every 500 milliseconds for real-time monitoring.
