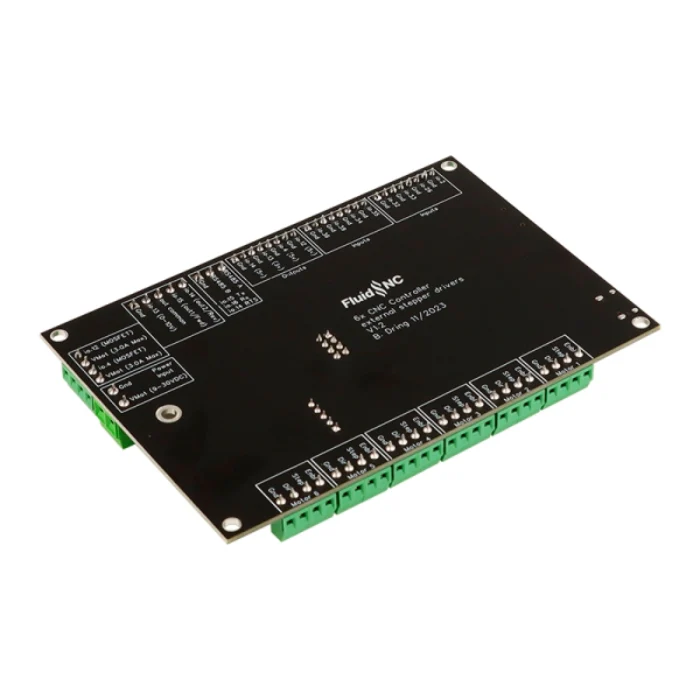

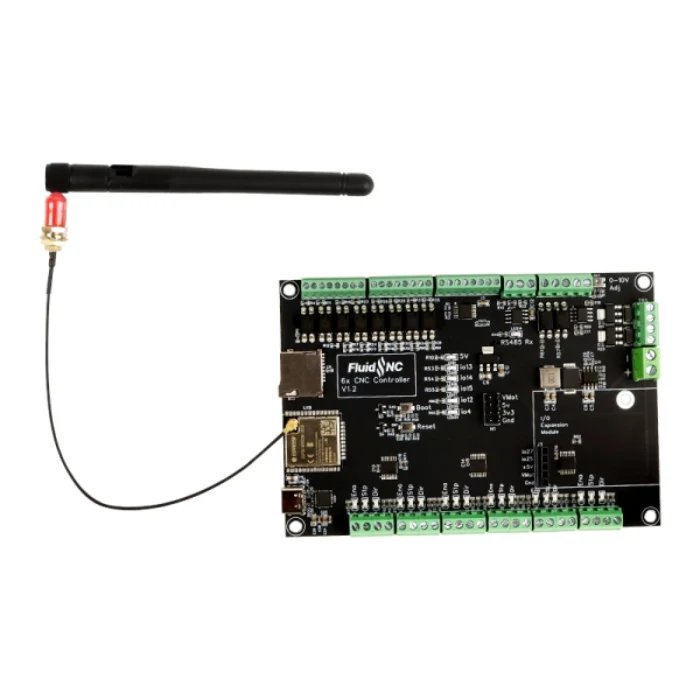

ELECROW 6 Axis CNC Controller for FluidNC

This CNC controller is built to manage a diverse range of machines. It supports up to 6 motors and various spindle and laser types. The setup is user-friendly, requiring no software compilation. All configuration, upgrades, and other settings can be managed through a web browser. Below are its key features.

Features

• ESP32 Controller: Integrated with USB-C connectivity.
• Motor Support: 6 motor connectors (5V signals), each with step, direction, and enable signals. Supports up to 6 axis or dual motors per axis.
• Switch Inputs: 8 input ports for limits, probes, and control switches.
• Spindle Compatibility: Supports RS485, 0-10V, PWM, relay, BESC, and laser spindles.
• MOSFET Outputs: 2 x 3A MOSFETs for relays, solenoids, and valves.
• Flexible Output: Unused 5V spindle outputs can be used for functions like coolant.
• Storage: Micro SD card socket for G-code files.
• Expansion: Module socket for GPIO extenders and pendant interfaces.
