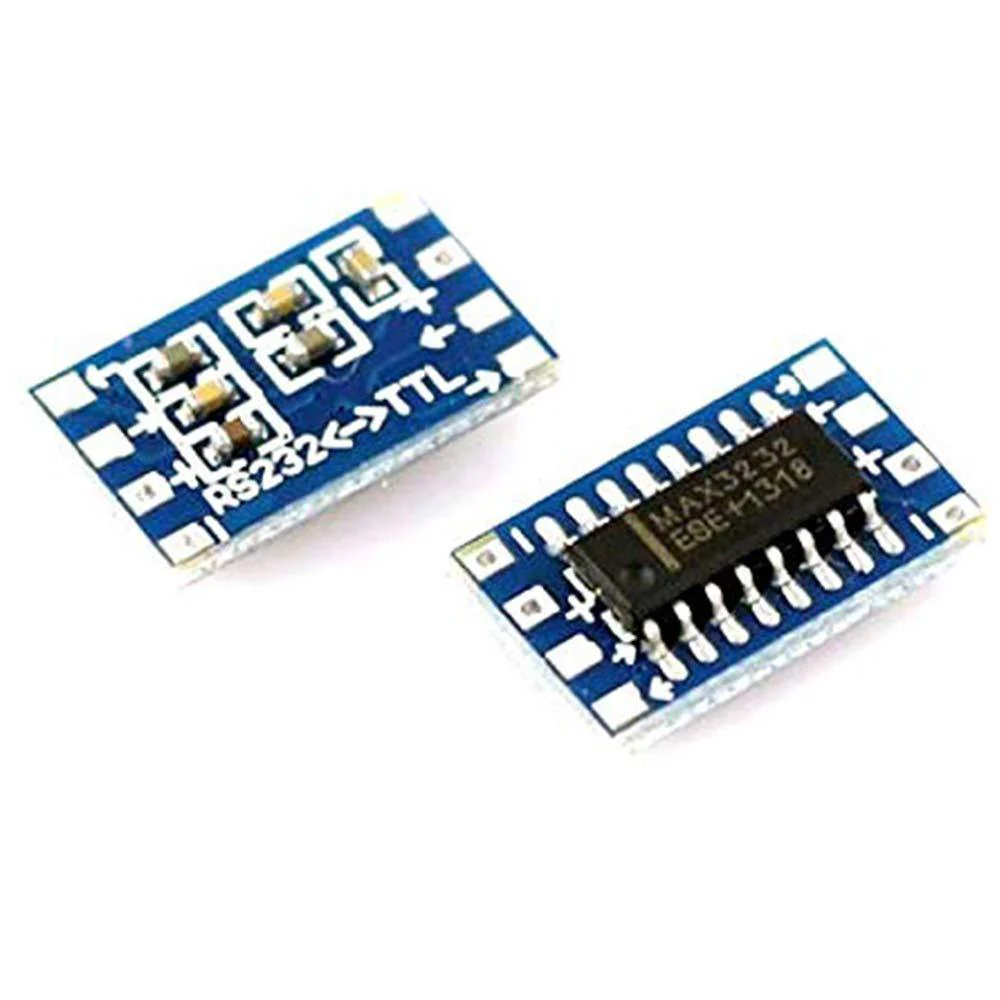

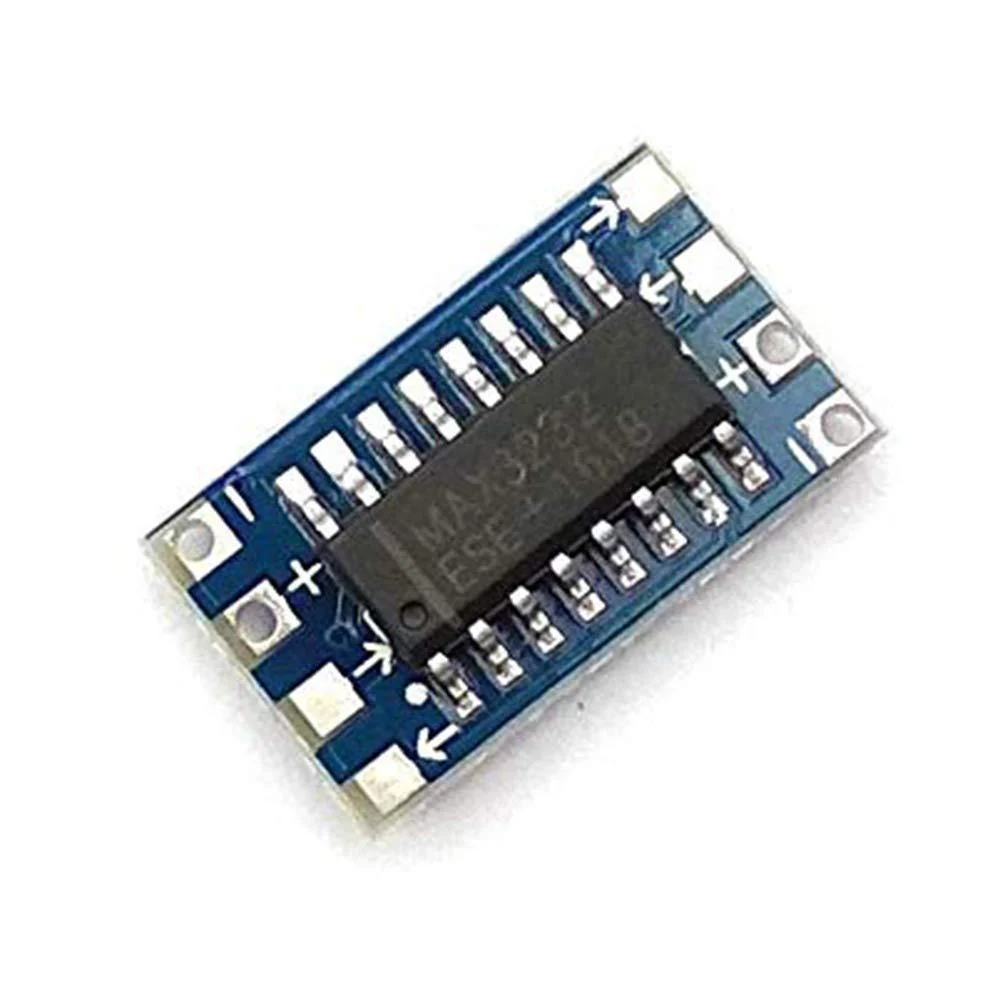

MAX3232 Mini RS232 to TTL Module

The Serial Port RS232 to TTL 5V Signal Converter Module is a professional module for projects requiring PC/Laptop RS232 interface to 5V TTL logic. This module converts signals between RS232 voltage levels and TTL voltage levels.

It is bi-directional, where TTL signals are converted to RS232 levels and RS232 levels are converted to TTL levels. It is ideal for use in pc interfacing, microcontroller-based projects, robotics, or for experimental and educational purposes.

Check out the entire range of Development Board Accessories

Pin-outs :

– (0V)

+(VCC 3.0~5.5V)

TTL-TXD

TTL-RXD

-(0V)

+(VCC 3.0~5.5V)

RS232-RX

RS232-TX
