MEGA Prototype Shield V3

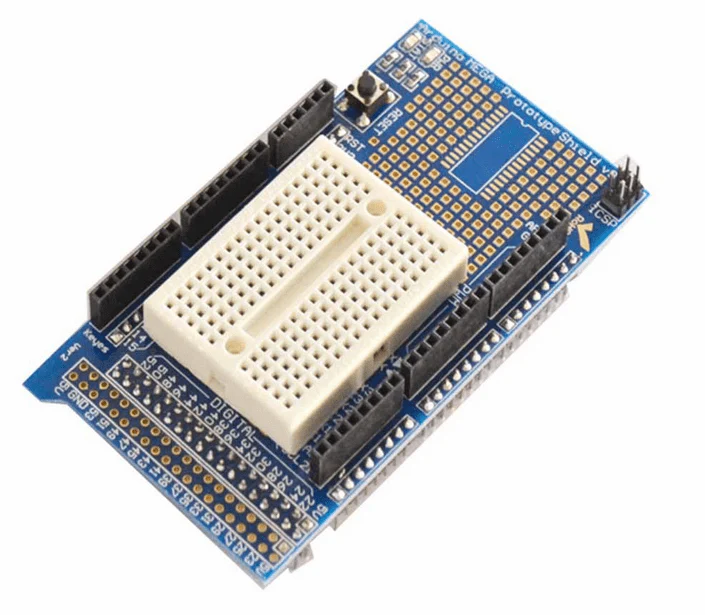

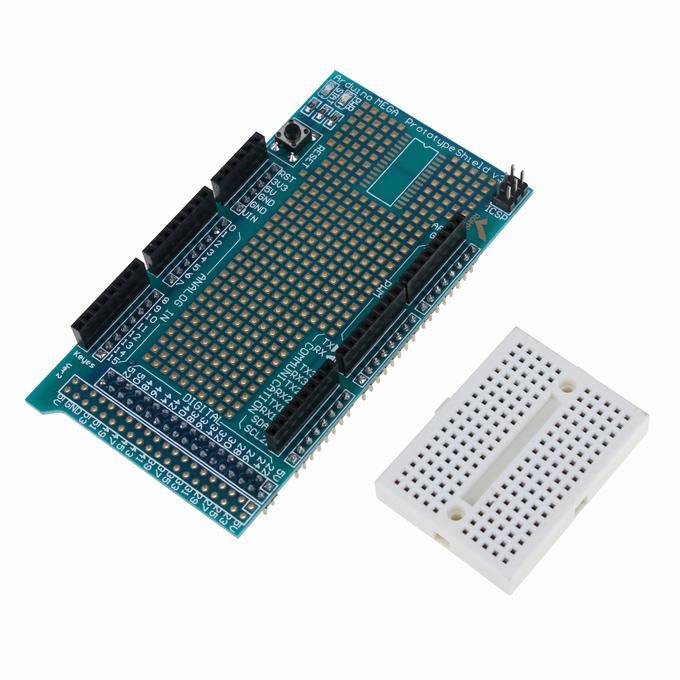

The Arduino-compatible MEGA Prototype Shield V3.0 comes equipped with a breadboard, allowing you to easily construct circuits. The Arduino shield features a gold PCB sink process and a compact mainboard with small golden square pad spacing, making it convenient to solder components onto.
With the Prototyping Shield, designing custom circuits is a breeze. You can either solder components to create a prototyping area for your project or utilize a small breadboard for testing circuit ideas without the need for solder. Additionally, it offers extra connections for all I/O pins and ample space to mount through-hole and surface mount integrated circuits. This makes it a convenient solution for building custom circuits and modules.
The Prototype shield, when paired with a miniature breadboard, measures 2.7 inches in length and 2.1 inches in width. It also includes three screw holes for attaching it to a surface or case. Do note that the distance between digital pins 7 and 8 is 160 mil (12:16”), which is not an even multiple of the 100-mile distance from the other pins.
Original: $1.38
-70%$1.38
$0.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MEGA Prototype Shield V3
The Arduino-compatible MEGA Prototype Shield V3.0 comes equipped with a breadboard, allowing you to easily construct circuits. The Arduino shield features a gold PCB sink process and a compact mainboard with small golden square pad spacing, making it convenient to solder components onto.
With the Prototyping Shield, designing custom circuits is a breeze. You can either solder components to create a prototyping area for your project or utilize a small breadboard for testing circuit ideas without the need for solder. Additionally, it offers extra connections for all I/O pins and ample space to mount through-hole and surface mount integrated circuits. This makes it a convenient solution for building custom circuits and modules.
The Prototype shield, when paired with a miniature breadboard, measures 2.7 inches in length and 2.1 inches in width. It also includes three screw holes for attaching it to a surface or case. Do note that the distance between digital pins 7 and 8 is 160 mil (12:16”), which is not an even multiple of the 100-mile distance from the other pins.
