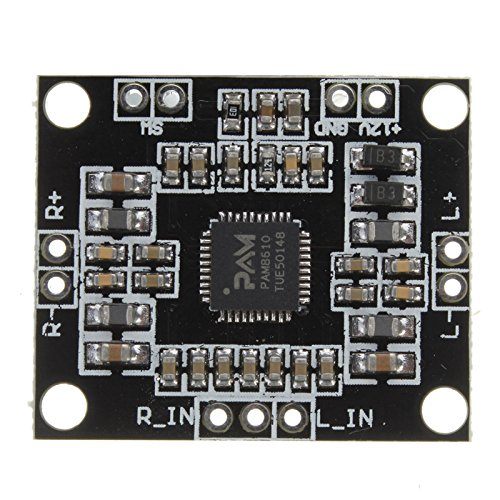

PAM8610 Digital Amplifier Board

PAM8610 Digital Amplifier Board

This amplifier plate adopts the official standard circuit design. Chip selection used is the United States' imported Long Ding micro class D power amplifier chip.

The PAM 8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors’ ICs.

The PAM8610 amplifier only requires very few external components, significantly saving cost and board space. This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40pin QFN 6 x 6 mm package.

The power amplifier has a high efficiency, large power, in the case of 12V power supply and can provide an output 10W + 10W power.Also has overheat and over-current protection functions.






PAM8610 Digital Amplifier Board Pinouts:

Note:

  1. The power supply voltage limit is 16.5V, do not use more than this voltage.
  2. The power supply is recommended for 12v, 3A power supply filter better.
  3. 4-8 inch stereo speakers recommended.
  4.  Do not short-circuit the audio output to each other or shorted to ground.
  5. Carefully check before electricity, ensure the wiring is correct before electricity.

Applications:

  • Portable Audio Player
  • Mini Speaker Control System
  • Music Systems
  • Radio or TV
  • Power Amplifier
